Each SMB Cu 250 frame is made from compound of Low Density Polyethylene and Barium Sulphate (15% - 24%) with two flexible arms with spurs.
99.99% purity OFE Copper wire (Diameter 0.30 mm ± 0.01 mm) is wound around the stem, giving a total copper surface area of 250mm² ± 20mm².
The 'Frame' is equipped with Polyamide Monofilament (Suture) for checking the presence/position of IUD and its easy removal.

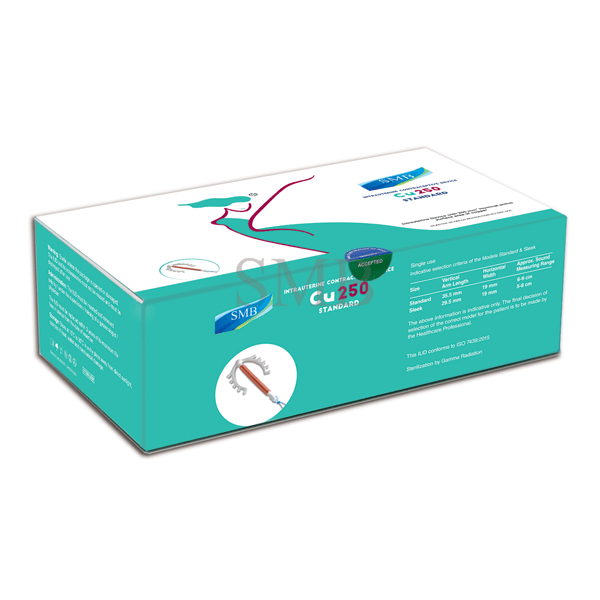

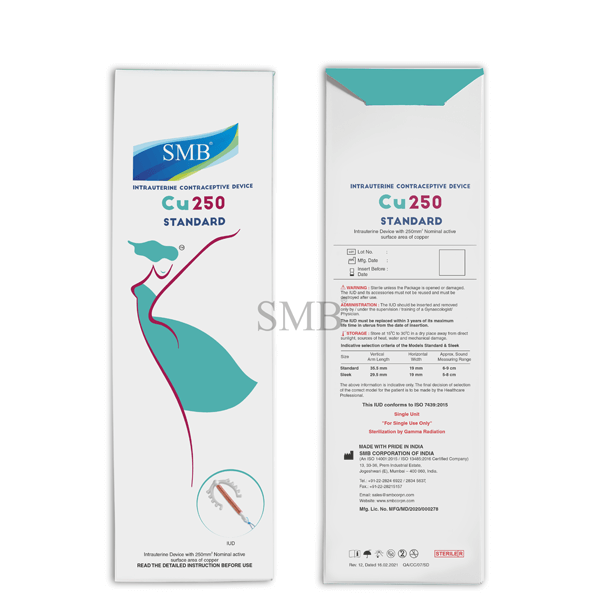

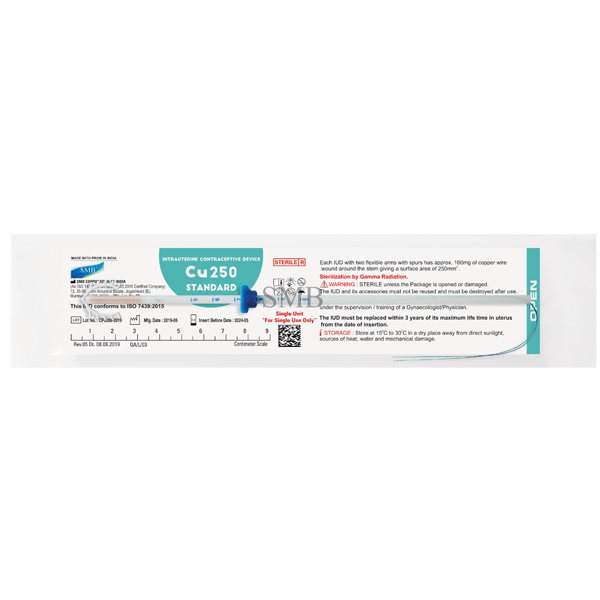

It is packed with an Insertion Tube in a Tyvek - Mylar film pouch or Mylar - Mylar film pouch.
The Insertion Tube is equipped with a movable flange to aid in gauging the depth to which the Insertion Tube should be inserted through the cervical canal and into the uterine cavity. Centimeter Scale printed in blue is provided on the Insertion Tube on special customer request for exact positioning of the flange on the Insertion Tube before Insertion.
The flexible side arms ensure that IUD remains in position as high as possible against the fundus, without the uterine cavity being stretched.
SMB Cu 250 is 98-99% effective Intrauterine Contraceptive Device. It does not affect female hormonal system.
Approved by CDSCO
